Material: Nickel Plated Brass / AISI303 or 316L SS for Gland, TPV for Seal, PA6 Nylon for Clamping Insert, NBR for O-ring
Temperature Range: -20°to +100 permanent, -40°to +150 intermittent
Ingress Protection Rating: IP68 5 bar
Flame Retardancy: V2 according to UL94
Standards: DIN EN 62444 / 50262 PG DIN40430

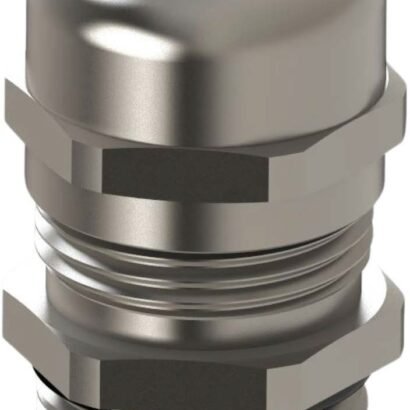

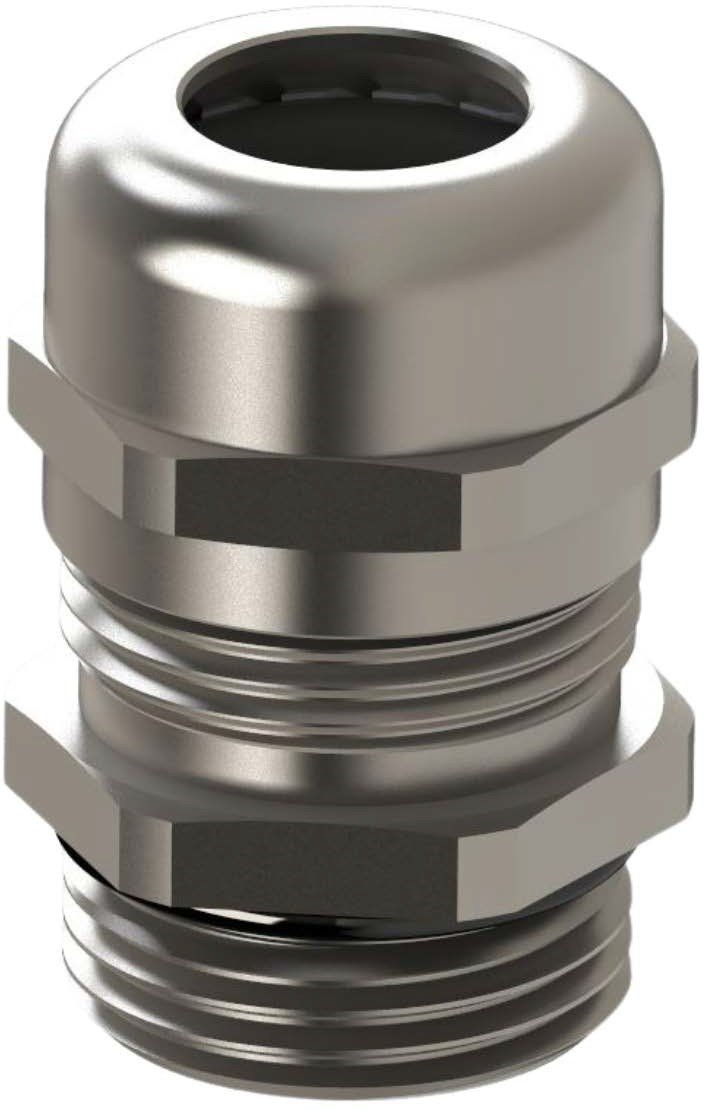

- PG threaded metallic cable glands
- TPV sealing provides strong Cable Grip, Strain Relief and Superior Ingress Protection
- For standard industrial applications in harsh
- Easy Assembly
- Accessories such as locknuts must be ordered separately
- For AISI 316L Stainless Steel ones Please add ‘316’ after Part Code! For example: PSSCG01-316
- For 25 mm thread length please add ’25’ after Part Code! For example: PBCG01-25
- All other size and cable dia. options available upon request
|
Entry Thread Size |
Code Brass |
Code Stainless Steel | Cable Range | H | GL | Wrench | |
| Inch | mm | (Inch) mm | (Inch) mm | (Inch) mm | |||
|
PG7 |
PBCG01 | PSSCG01 | 0.12-0.26 | 3.0-6.5 | (0.87) 22 | (0.24) 6 | (0.47) 14 |
|
PG9 |
PBCG02 | PSSCG02 | 0.15-0.32 | 4.0-8.0 | (0.91) 23 | (0.24) 6 |
(0.67) 17 |
|
PG11 |
PBCG03 | PSSCG03 | 0.19-0.39 | 5.0-10 | (0.96) 24.5 | (0.24) 6 |
(0.78) 20 |
|
PG13.5 |
PBCG04 | PSSCG04 | 0.15-0.39 | 4.0-10 | (1.04) 26.5 | (0.26) 6.5 |
(0.87) 22 |
|
PG13.5 |
PBCG05 | PSSCG05 | 0.23-0.47 | 6.0-12 | (1.04) 26.5 | (0.26) 6.5 |
(0.87) 22 |
|
PG16 |
PBCG06 | PSSCG06 | 0.39-0.55 | 10-14 | (1.10) 28 | (0.26) 6.5 |
(0.94) 24 |
|
PG21 |
PBCG07 | PSSCG07 | 0.51-0.71 | 13-18 | (1.24) 31.5 | (0.27) 7 |
(1.18) 30 |
|
PG29 |
PBCG08 | PSSCG08 | 0.70-0.98 | 18-25 | (1.50) 38 | (0.31) 8 |
(1.57) 40 |
|
PG36 |
PBCG09 | PSSCG09 | 0.87-1.26 | 22-32 | (1.69) 43 | (0.39) 10 |
(1.96) 50 |
|
PG42 |
PBCG10 | PSSCG10 | 1.18-1.49 | 30-38 | (1.85) 47 | (0.47) 12 |
(2.24) 57 |
|
PG48 |
PBCG11 | PSSCG11 | 1.30-1.73 | 33-44 | (1.89) 48 | (0.55) 14 |
(2.52) 64 |
|
PG7 |
PBCG12 | PSSCG12 | 0.12-0.26 | 3.5-6.0 | (0.87) 22 | (0.39) 10 |
(0.47) 14 |
|
PG9 |
PBCG13 | PSSCG13 | 0.15-0.32 | 4.0-8.0 | (0.91) 23 | (0.39) 10 | (0.67) 17 |
| PG11 | PBCG14 | PSSCG14 | 0.19-0.39 | 5.0-10 | (0.96) 24.5 | (0.39) 10 |
(0.78) 20 |
|
PG13.5 |
PBCG15 | PSSCG15 | 0.15-0.39 | 4.0-10 | (1.04) 26.5 | (0.39) 10 |
(0.87) 22 |
|
PG13.5 |
PBCG16 | PSSCG16 | 0.23-0.47 | 6.0-12 | (1.04) 26.5 | (0.39) 10 | (0.87) 22 |
| PG16 | PBCG17 | PSSCG17 | 0.39-0.55 | 10-14 | (1.10) 28 | (0.39) 10 |
(0.94) 24 |
|
PG21 |
PBCG18 | PSSCG18 | 0.51-0.71 | 13-18 | (1.24) 31.5 | (0.47) 12 | (1.18) 30 |
| PG29 | PBCG19 | PSSCG19 | 0.70-0.98 | 18-25 | (1.50) 38 | (0.47) 12 |
(1.57) 40 |
|
PG36 |
PBCG20 | PSSCG20 | 0.87-1.26 | 22-32 | (1.69) 43 | (0.47) 14 | (1.96) 50 |
| PG42 | PBCG21 | PSSCG21 | 1.18-1.49 | 30-38 | (1.85) 47 | (0.87) 18 |
(2.36) 60 |
|
PG48 |
PBCG22 | PSSCG22 | 1.30-1.73 | 33-44 | (1.89) 48 | (0.87) 18 |
(2.56) 65 |
