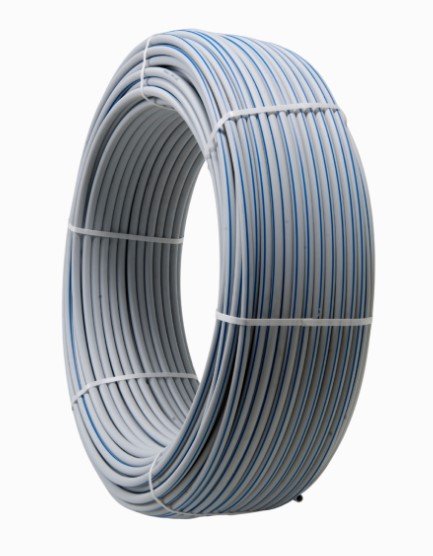

PE V0 Coil Pipe Light Gauge

Application Fields: Used in buildings and prefabs, flush mounted and surface mounted applications, concrete and screed, walls and suspended ceilings, tunnel formwork applications, under plaster and electrical installations where low mechanical stress is expected.

Technical Properties

Material: PE based Thermoplastic

Compression Resistance: 72 lbf/ 1 min / 73.4±7.2ºF Class 2

Impact Resistance: 4.4 lbs/4 inch/ – 13ºF Class 3

Minimum Ambient Temperature: – 13ºF Class 4

Maximum Ambient Temperature: + 140ºF Class 1

Code		Nominal Size mm (Inch)	Size (Inch)		Coil Length (FT)
320N	750N	Nominal Size mm (Inch)	Inner	Outer	Coil Length (FT)
OP1-014	OP3-014	14 (0.55)	0.45	0.55	656
OP1-016	OP3-016	16 (0.62)	0.51	0.62	656
OP1-018	OP3-018	18 (0.70)	0.59	0.7	656
OP1-020	OP3-020	20 (0.78)	0.67	0.78	656
OP1-025	OP3-025	25 (0.98)	0.84	0.98	328
OP1-032	OP3-032	32 (1.25)	1.09	1.25	328
OP1-040	OP3-040	40 (1.57)	1.37	1.57	328
OP1-050	OP3-050	50 (1.96)	1.74	1.96	328
OP1-063	OP3-063	63 (2.48)	2.24	2.48	328
OP1-075	OP3-075	75 (2.95)	2.68	2.95	328
OP1-090	OP3-090	90 (3.54)	3.24	3.54	164

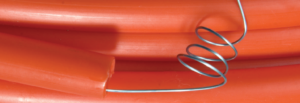

This product can also be supplied with a draw wire. Please add “dw” after part code
For other color Please add color name “OP1-025-Grey” after part code.
