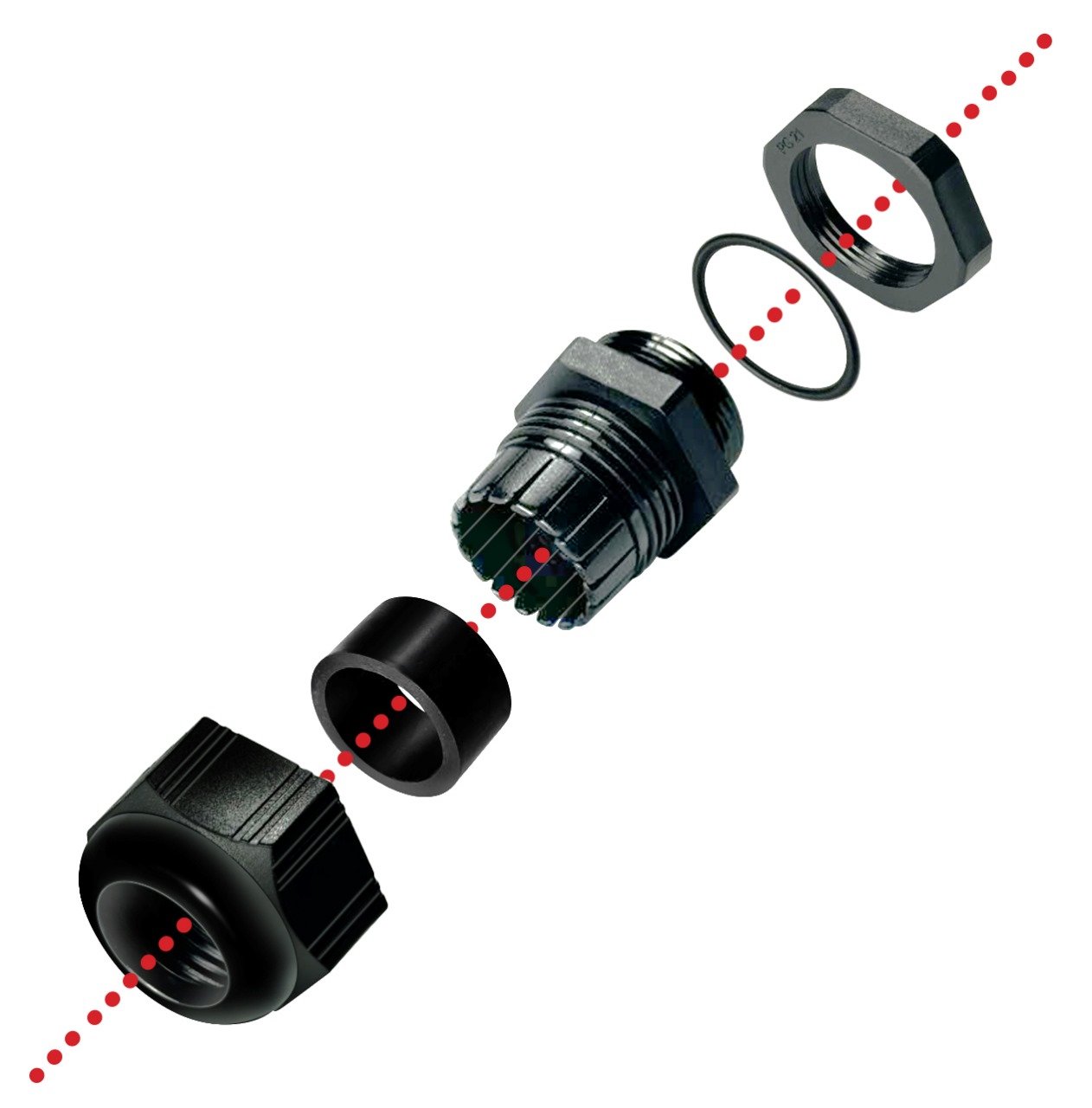

Material: PA6 Nylon for Gland, TPV for Seal, NBR for O-ring (on request) / TPV for washer (on request)
Temperature Range: -20°to +100 permanent up to +150 intermittent
Ingress Protection Rating: IP68 5 bar when it is used with O-ring or washer
Flame Retardancy: V2 according to UL94 / V0 (on request)
Standards: EN50262 Metric EN60423

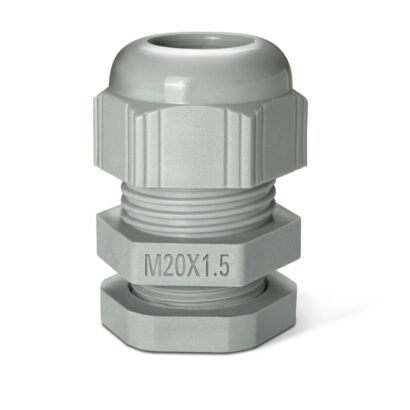

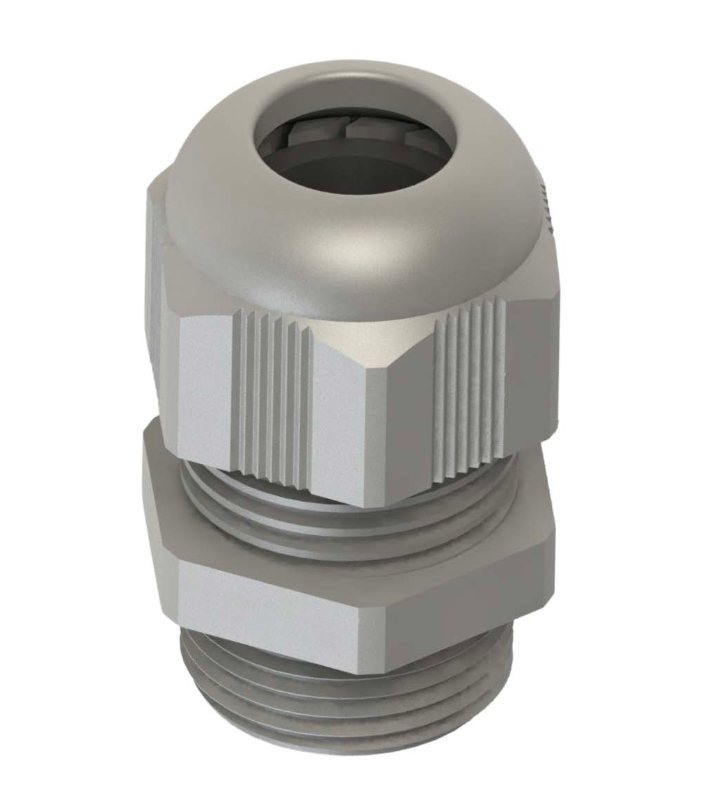

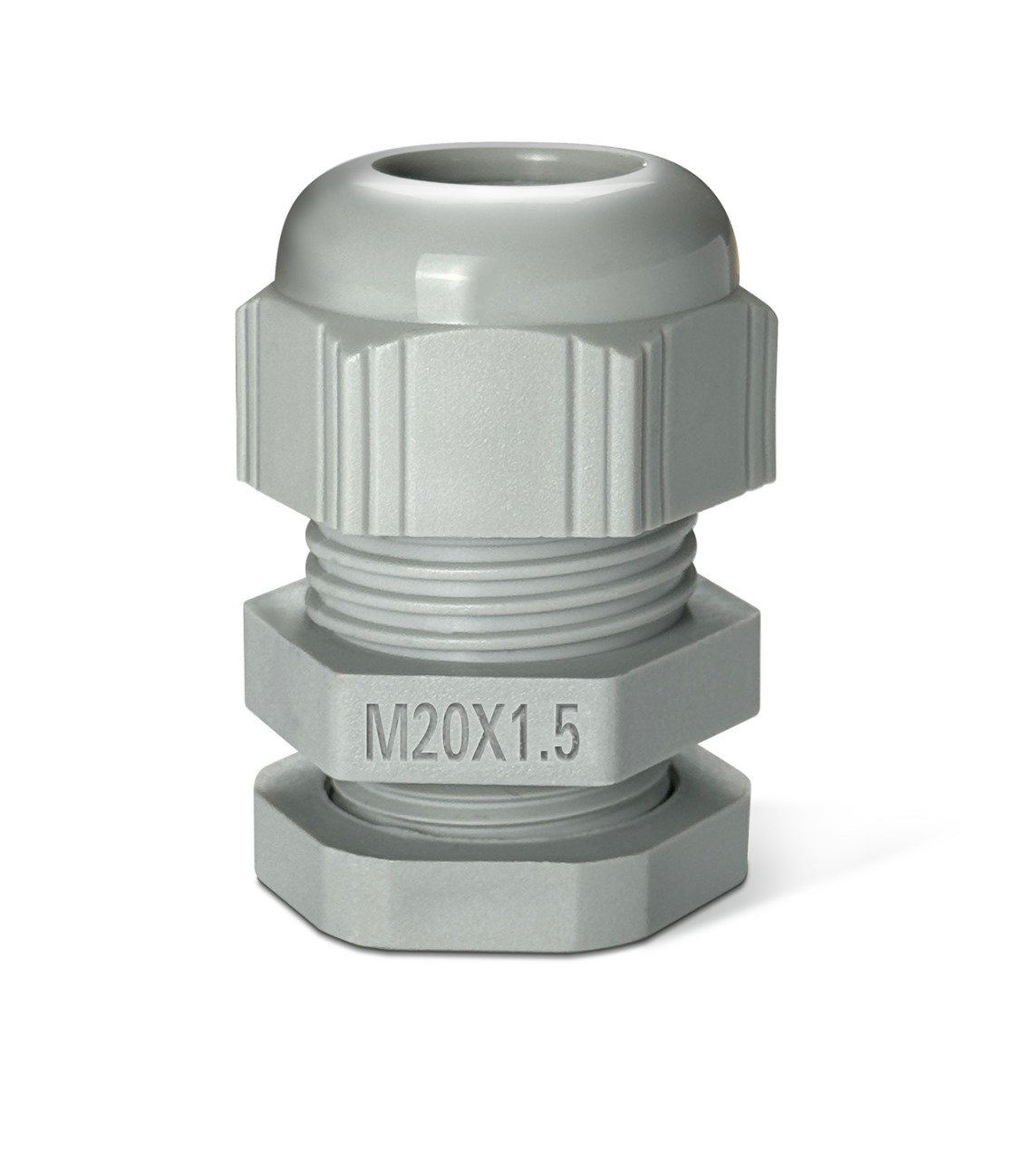

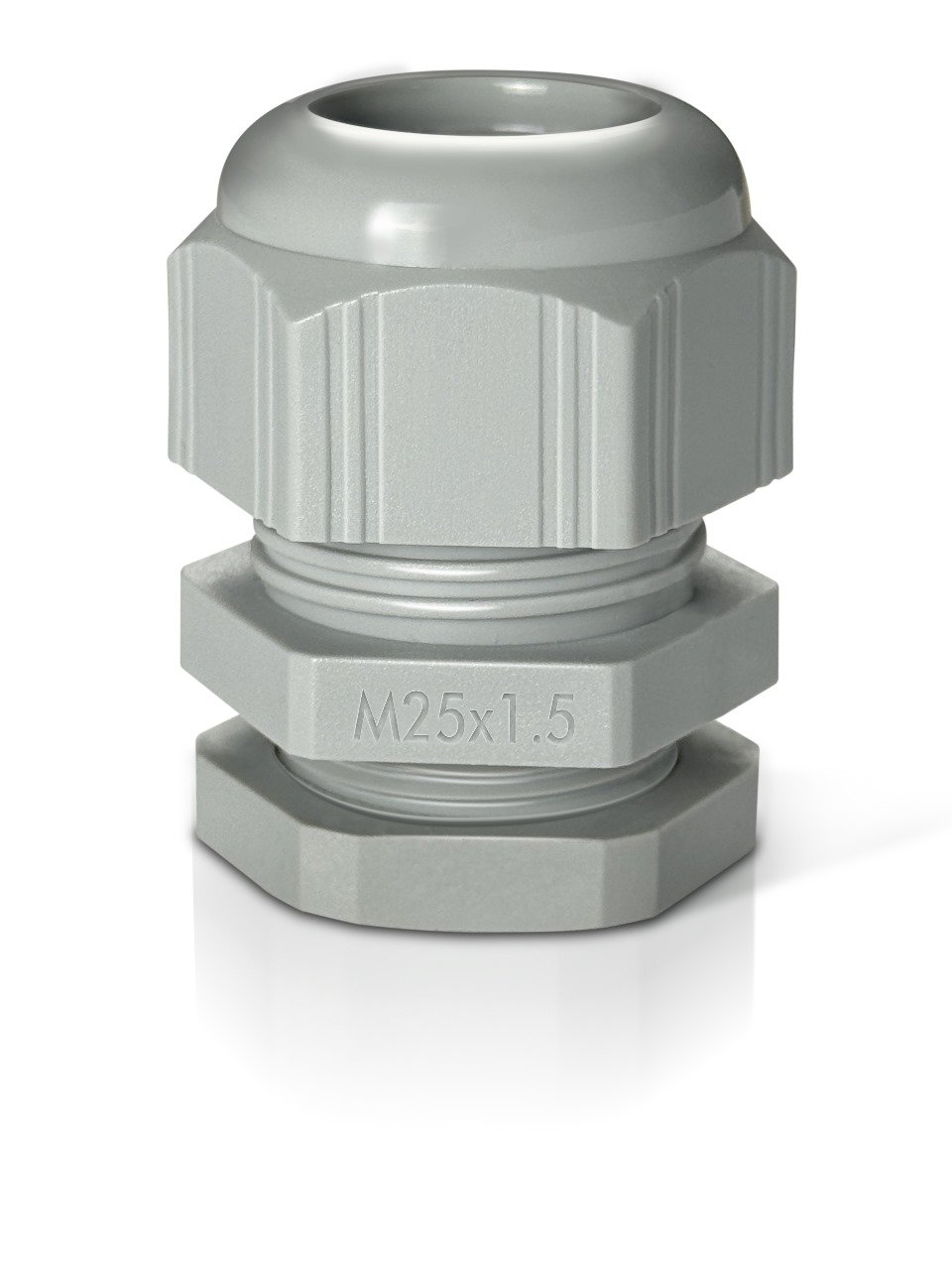

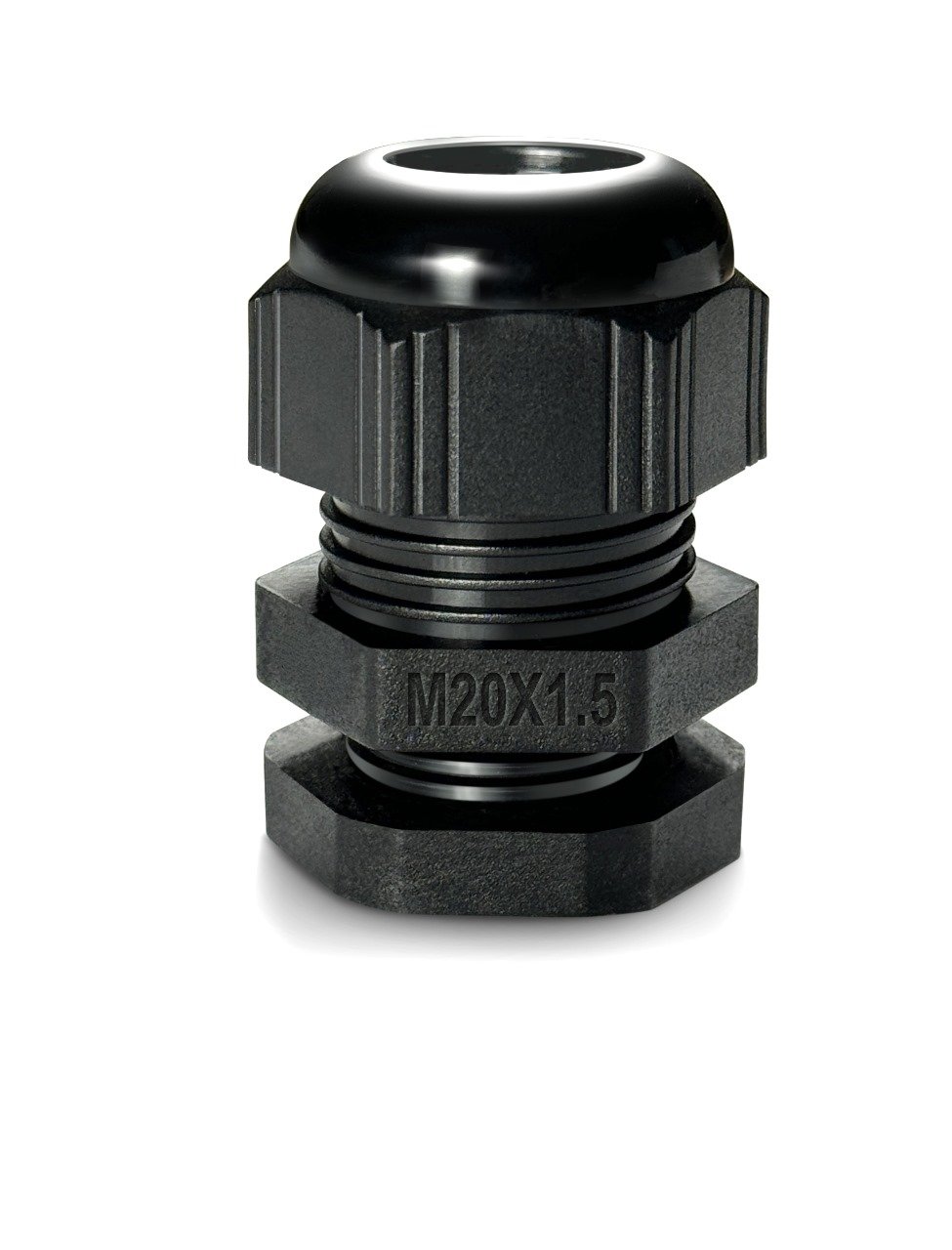

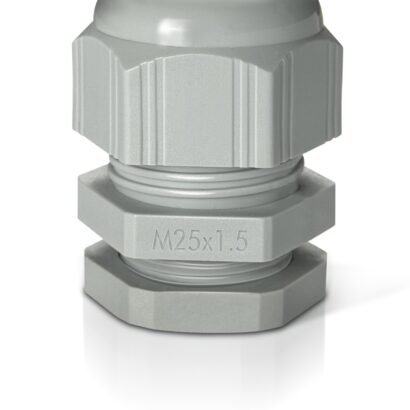

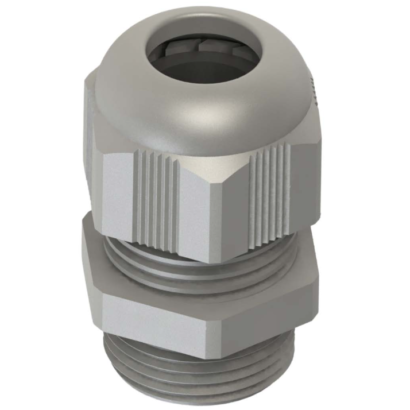

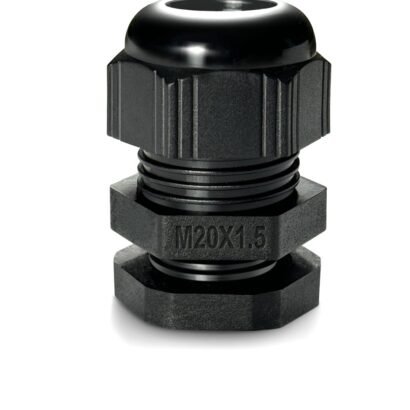

- Standard Metric threaded nylon cable glands
- TPV sealing provides strong Cable Grip, Strain Relief and Superior Ingress Protection
- With its unique Anti-Click design, it provides Anti-Vibration
- Easy Assembly
- Halogen Free
- Accessories such as locknuts and O-ring must be ordered
- Long thread ones (15 mm.) is supplied on request. Please add ‘Long’ after Part Code!

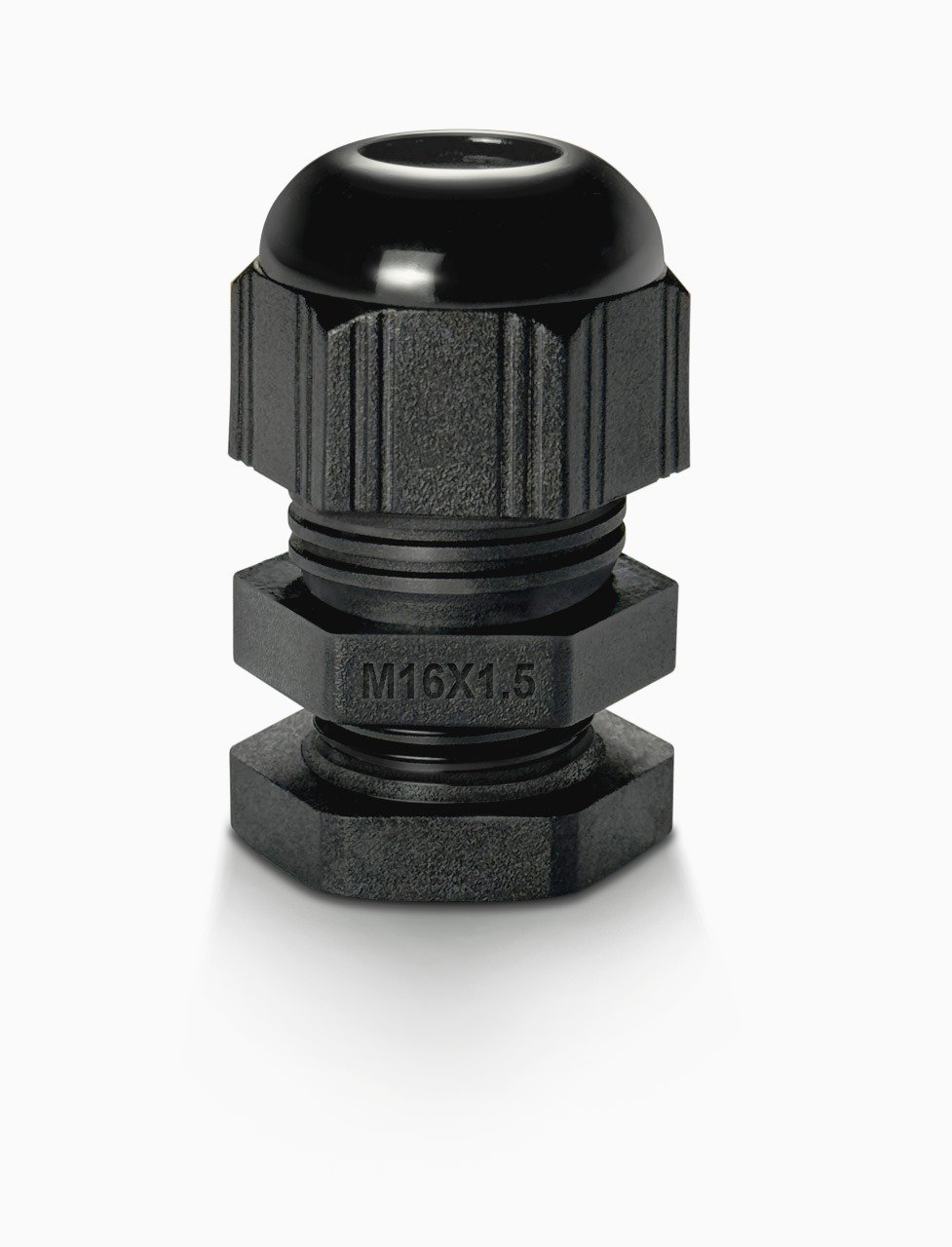

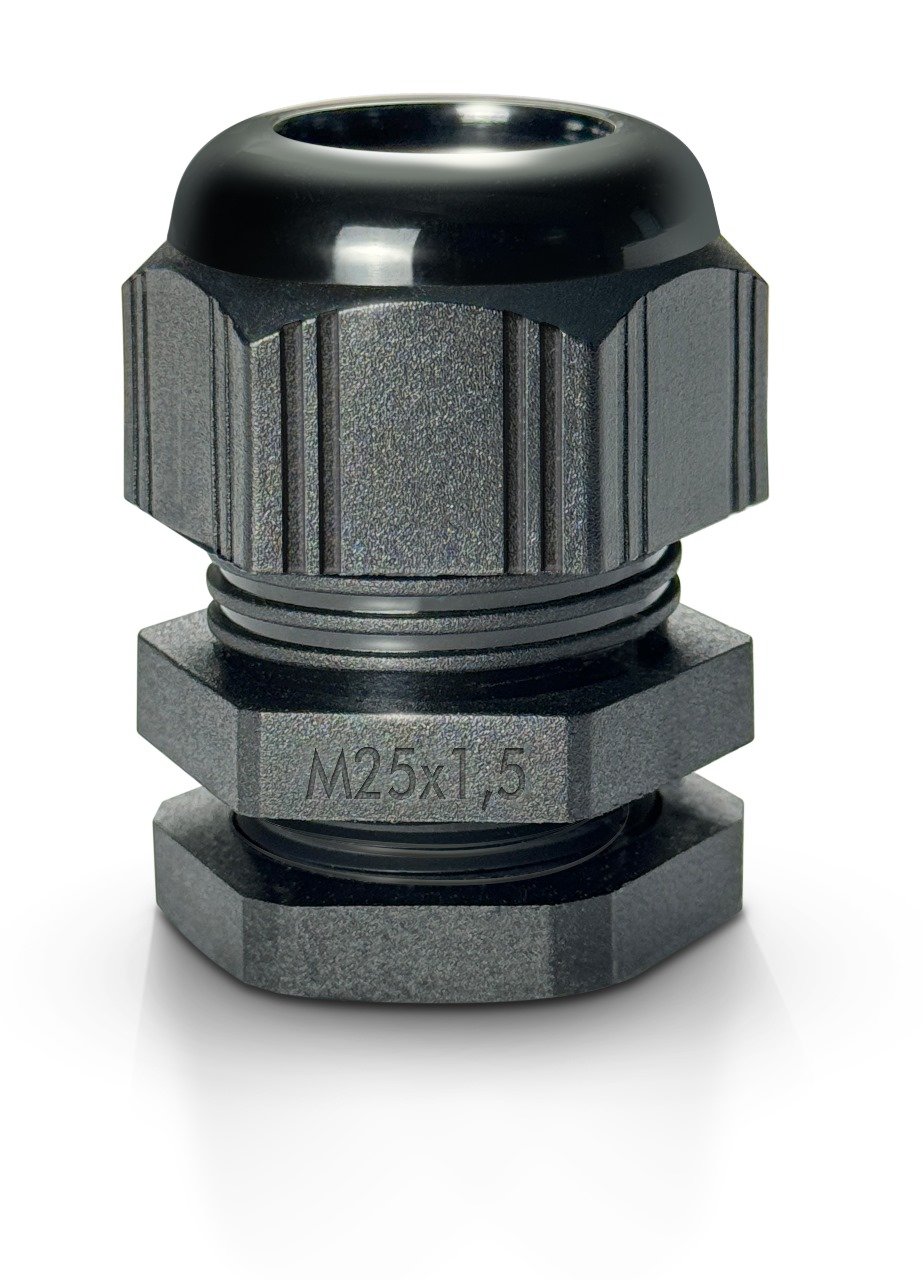

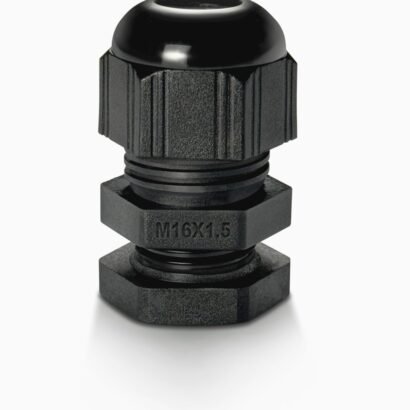

- Any other color can be supplied on request. Please add color name after Part Code! For example: MCG01-Black
|
Entry Thread Size |
Light Grey RAL7035
Code |
Cable Range | H | GL | Wrench | |
| Inch | mm. | (Inch) mm | (Inch) mm | (Inch) mm | ||
|
M 12 x 1.5 |
MCG01-L | 0.12-0.26 | 3.0 -6.5 | (0.94) 24 |
(0.31) 8.0 |
(0.59) 15 |
|
M 16 x 1.5 |
MCG02-L | 0.15-0.32 | 4.0-8.0 | (1.10) 28 | (0.31) 8.0 |
(0.75) 19 |
|
M 16 x 1.5 |
MCG03-L | 0.19-0.39 | 5.0-10.0 | (1.14) 29 | (0.39) 10 |
(0.87) 22 |
|
M 20 x 1.5 |
MCG04-L | 0.15-0.39 | 4.0-10.0 | (1.14) 29 | (0.39) 10 |
(0.94) 24 |
|
M 20 x 1.5 |
MCG05-L | 0.23-0.47 | 6.0-12.0 | (1.14) 29 | (0.39) 10 |
(0.94) 24 |
|
M 20 x 1.5 |
MCG06-L | 0.39-0.55 | 10.0-14.0 | (1.30) 33 | (0.39) 10 |
(1.06) 27 |
|
M 25 x 1.5 |
MCG07-L | 0.35-0.67 | 9.0-17.0 | (1.50) 38 | (0.39) 10 | (1.30) 33 |
|
M 25 x 1.5 |
MCG08-L | 0.51-0.71 | 13.0-18.0 | (1.50) 38 | (0.39) 10 |
(1.30) 33 |
| M 25 x 1.5 | MCG09-L | 0.43-0.67 | 11.0-17.0 | (1.38) 35 | (0.39) 10 |
(1.14) 29 |
|
M 25 x 1.5 |
MCG10-L | 0.35-0.55 | 9.0-14.0 | (1.38) 35 | (0.39) 10 | (1.14) 29 |
|
M 25 x 1.5 |
MCG11-L | 0.15-0.39 | 4.0-10.0 | (1.26) 32 | (0.39) 10 |
(1.14) 29 |
| M 25 x 1.5 | MCG12-L | 0.23-0.47 | 6.0-12.0 | (1.26) 32 | (0.39) 10 |
(1.14) 29 |
|
M 32 x 1.5 |
MCG13-L | 0.70-0.98 | 18.0-25.0 | (1.61) 41 | (0.39) 10 | (1.65) 42 |
| M 40 x 1.5 | MCG14-L | 0.87-1.26 | 22.0-32.0 | (2.01) 51 | (0.39) 10 |
(2.09) 53 |
|
M 50 x 1.5 |
MCG15-L | 1.18-1.49 | 30.0-38.0 | (2.09) 53 | (0.71) 18 |
(2.36) 60 |
| M 63 x 1.5 | MCG16-L | 1.33-1.73 | 34.0-44.0 | (3.16) 55 | (0.71) 18 |
(2.76) 70 |
