Material: PA6 Nylon for Gland, CR for Seal, NBR for O-ring (on request) / TPV for washer (on request)
Temperature Range: -20°to +100 permanent up to +150 intermittent
Ingress Protection Rating: IP68 5 bar when it is used with O-ring or washer
Flame Retardancy: V2 according to UL94 / V0 (on request)
Standards: NPT ANSI B1.20.1

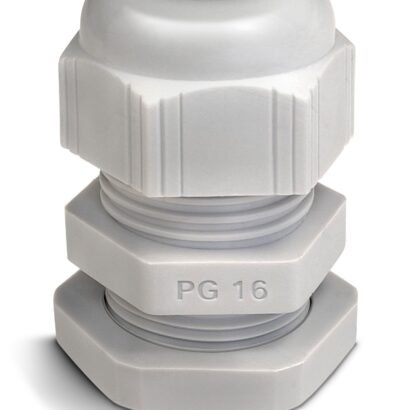

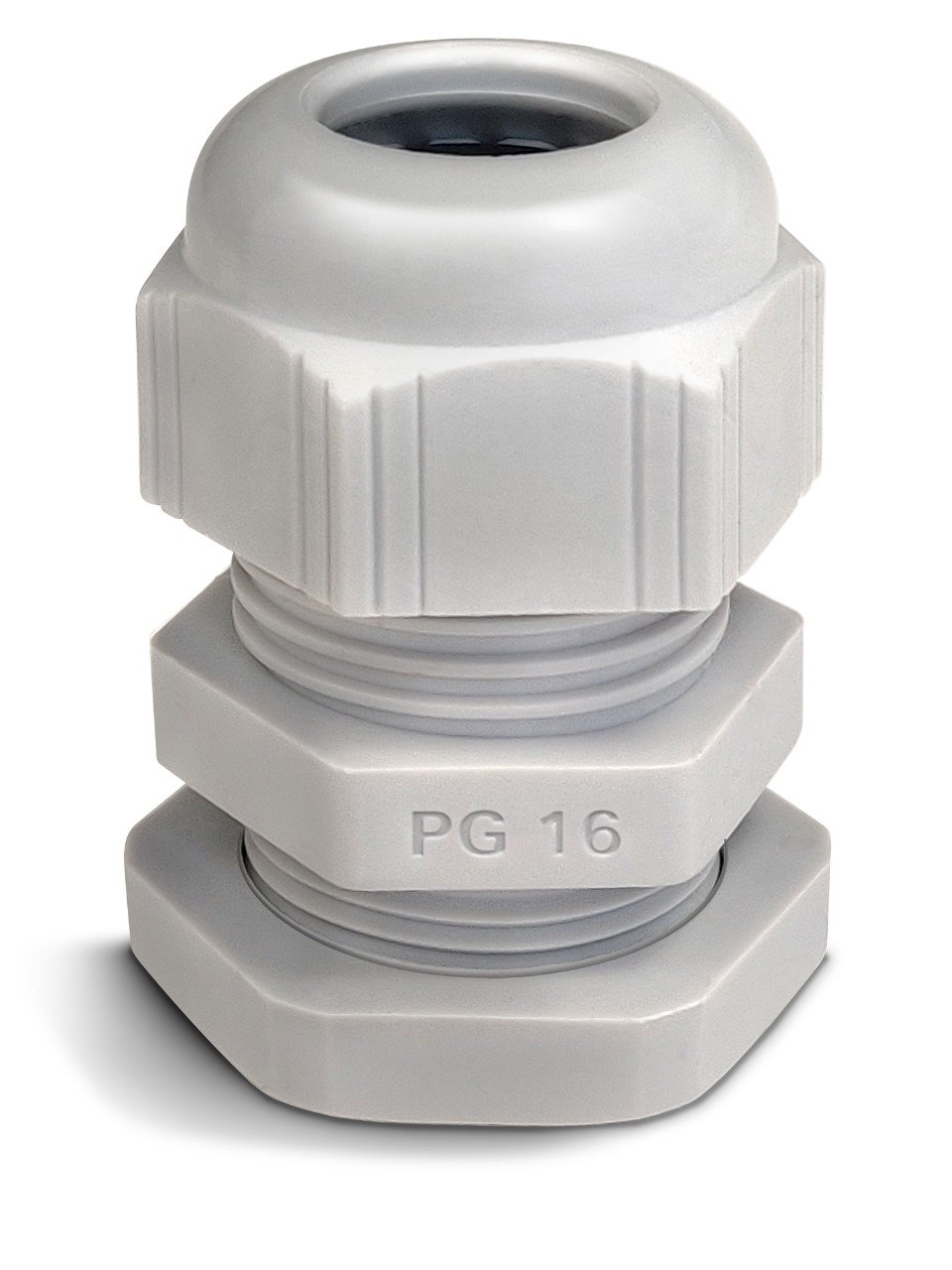

- Standard NPT threaded nylon cable glands
- CR sealing provides Strong Cable Grip, Strain Relief and Superior Ingress Protection
- With its unique Anti-Click design, it provides Anti-Vibration
- Easy Assembly
- Halogen Free
- Accessories such as locknuts and O-ring must be ordered
- Any other color can be supplied on request. Please add color name after Part Code! For example: NCG01-Black
|
Entry Thread Size |
Light Grey RAL7035
Code |
Cable Range | H | GL | Wrench | |
|
Inch |
mm. | (Inch) mm | (Inch) mm |
(Inch) mm |
||
|
NPT 3/8” |
NCG01-L | 0.12-0.28 | 3.0-7.0 | (1.27) 32.2 | (0.59) 15 |
(0.87) 22 |
|
NPT 3/8” |
NCG02-L | 0.19-0.39 | 5.0-10 | (1.27) 32.2 | (0.59) 15 | (0.87) 22 |
| NPT 1/2” | NCG03-L | 0.20-0.35 | 5.0-9.0 | (1.28) 32.4 | (0.59) 15 |
(0.94) 24 |
|
NPT 1/2” |
NCG04-L | 0.23-0.47 | 6.0-12 | (1.28) 32.4 | (0.59) 15 | (0.94) 24 |
| NPT 1/2” | NCG05-L | 0.28-0.47 | 7.0-12 | (1.26) 31.9 | (0.59) 15 |
(1.06) 27 |
|
NPT 1/2” |
NCG06-L | 0.39-0.55 | 10-14 | (1.26) 31.9 | (0.59) 15 | (1.06) 27 |
| NPT 3/4” | NCG07-L | 0.35-0.63 | 9.0-16 | (1.51) 38.4 | (0.59) 15 |
(1.30) 33 |
|
NPT 3/4” |
NCG08-L | 0.51-0.71 | 13-18 | (1.51) 38.4 | (0.59) 15 | (1.30) 33 |
| NPT 1” | NCG09-L | 0.47-0.79 | 12-20 | (1.70) 43.3 | (0.71) 18 |
(1.65) 42 |
|
NPT 1” |
NCG010-L | 0.70-0.98 | 18-25 | (1.70) 43.3 | (0.71) 18 |
(1.65) 42 |
