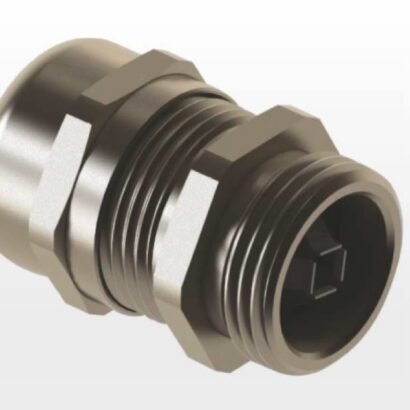

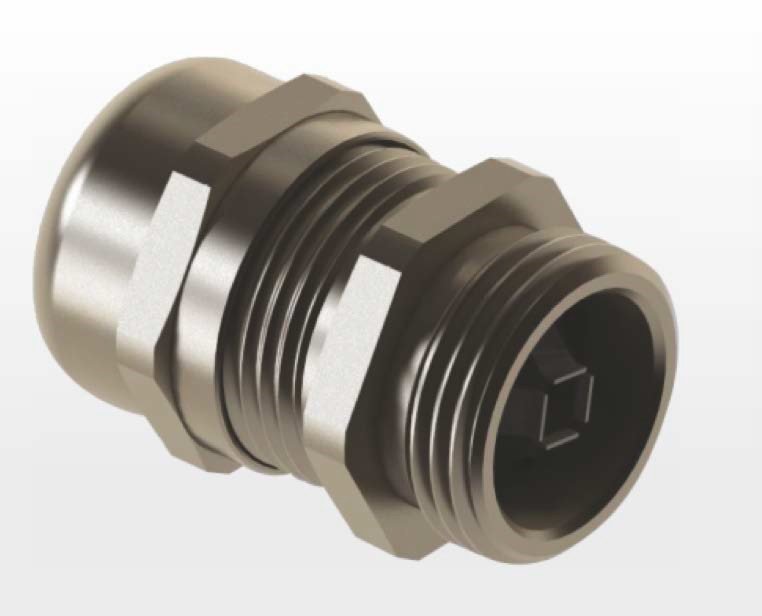

Material: Nickel Plated Brass / AISI 303 or 316L SS for Gland, TPV for Seal, AISI 301 SS for EMC Spring, PA6 Nylon for Clamping, Insert NBR for O-ring
Temperature Range: -20°to +100 permanent, -40°to +150 intermittent
Ingress Protection Rating: IP68 5 bar
Flame Retardancy: V2 according to UL94
Standards: DIN EN62444 / 50262 Metric EN 60423
- PG / Metric / NPT threaded EMC cable glands
- TPV sealing provides strong Cable Grip, Strain Relief and Superior Ingress Protection
- Long-lasting contact by high-definition contact spring
- Easy Assembly
- Excellent Shielding
- Accessories such as locknuts must be ordered separately
- For AISI 316L Stainless Steel ones Please add ‘316’ after Part Code! For example: PBCG01-25
- Long thread options available upon request
- PG & NPT Thread available on request!
|

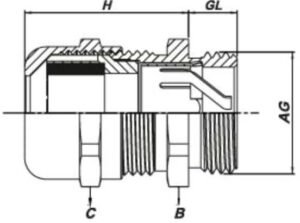

Entry Thread Size |
Code Brass | Code Stainless Steel | H | GL | Wrench | ||
| Inch | (Inch) |
(Inch) |
|||||
|
PG7 |
PBCG01 | PSSCG01 | 0.12-0.26 | (0.87) 22 | (0.24) 6 | ||
| PG9 | PBCG02 | PSSCG02 | 0.15-0.32 | (0.91) 23 |
(0.24) 6 |
||
|
PG11 |
PBCG03 | PSSCG03 | 0.19-0.39 | (0.96) 24.5 | (0.24) 6 | ||
| PG13.5 | PBCG04 | PSSCG04 | 0.15-0.39 | (1.04) 26.5 |
(0.26) 6.5 |
||
|
PG13.5 |
PBCG05 | PSSCG05 | 0.23-0.47 | (1.04) 26.5 | (0.26) 6.5 | ||
| PG16 | PBCG06 | PSSCG06 | 0.39-0.55 | (1.10) 28 |
(0.26) 6.5 |
||
|
PG21 |
PBCG07 | PSSCG07 | 0.51-0.71 | (1.24) 31.5 | (0.27) 7 | ||
| PG29 | PBCG08 | PSSCG08 | 0.70-0.98 | (1.50) 38 |
(0.31) 8 |
||
|
PG36 |
PBCG09 | PSSCG09 | 0.87-1.26 | (1.69) 43 | (0.39) 10 | ||
| PG42 | PBCG10 | PSSCG10 | 1.18-1.49 | (1.85) 47 |
(0.47) 12 |
||
|
PG48 |
PBCG11 | PSSCG11 | 1.30-1.73 | (1.89) 48 | (0.55) 14 | ||
| PG7 | PBCG12 | PSSCG12 | 0.12-0.26 | (0.87) 22 |
(0.39) 10 |
||
|
PG9 |
PBCG13 | PSSCG13 | 0.15-0.32 | (0.91) 23 | (0.39) 10 | ||
| PG11 | PBCG14 | PSSCG14 | 0.19-0.39 | (0.96) 24.5 |
(0.39) 10 |
||
|
PG13.5 |
PBCG15 | PSSCG15 | 0.15-0.39 | (1.04) 26.5 | (0.39) 10 | ||
| PG13.5 | PBCG16 | PSSCG16 | 0.23-0.47 | (1.04) 26.5 |
(0.39) 10 |
||
|
PG16 |
PBCG17 | PSSCG17 | 0.39-0.55 | (1.10) 28 | (0.39) 10 | ||
| PG21 | PBCG18 | PSSCG18 | 0.51-0.71 | (1.24) 31.5 |
(0.47) 12 |
||
|
PG29 |
PBCG19 | PSSCG19 | 0.70-0.98 | (1.50) 38 | (0.47) 12 | ||
| PG36 | PBCG20 | PSSCG20 | 0.87-1.26 | (1.69) 43 |
(0.47) 14 |
||
|
PG42 |
PBCG21 | PSSCG21 | 1.18-1.49 | (1.85) 47 | (0.87) 18 | ||
| PG48 | PBCG22 | PSSCG22 | 1.30-1.73 | (1.89) 48 |
(0.87) 18 |
||
