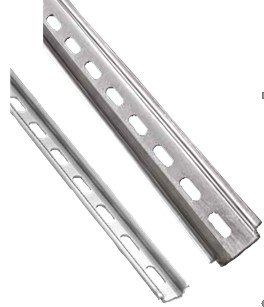

Mounting Din Rails
Material: DKP / Aluminum (on request) Galvanized / CR+3 for Coating
Non-Perforated & Perforated options
35×7.5 / 35×15 / 15×5.5mm. options
|
Code |
Type |
Dimensions | ||
| Width (Inch) mm | Height (Inch) mm |
Length (Inch) mm |
||
|
ONPDR3575-0 |
Non-Perforated | (1.38) 35 | (0.30) 7.5 | (0.01) 0.3 |
| ONPDR3575-1 | Non-Perforated | (1.38) 35 | (0.30) 7.5 |
(0.04) 1 |
|
ONPDR3575-2 |
Non-Perforated | (1.38) 35 | (0.30) 7.5 | (0.08) 2 |
| ONPDR3575-3 | Non-Perforated | (1.38) 35 | (0.30) 7.5 |
(0.12) 3 |
|
OPDR3575-0 |
Perforated | (1.38) 35 | (0.30) 7.5 | (0.01) 0.3 |
| OPDR3575-1 | Perforated | (1.38) 35 | (0.30) 7.5 |
(0.04) 1 |
|
OPDR3575-2 |
Perforated | (1.38) 35 | (0.30) 7.5 | (0.08) 2 |
| OPDR3575-3 | Perforated | (1.38) 35 | (0.30) 7.5 |
(0.12) 3 |
|
ONPDR3515-0 |
Non-Perforated | (1.38) 35 | (0.59) 15 | (0.01) 0.3 |
| ONPDR3515-1 | Non-Perforated | (1.38) 35 | (0.59) 15 |
(0.04) 1 |
|
ONPDR3515-2 |
Non-Perforated | (1.38) 35 | (0.59) 15 | (0.08) 2 |
| ONPDR3515-3 | Non-Perforated | (1.38) 35 | (0.59) 15 |
(0.12) 3 |
|
OPDR3515-0 |
Perforated | (1.38) 35 | (0.59) 15 | (0.01) 0.3 |
| OPDR3515-1 | Perforated | (1.38) 35 | (0.59) 15 |
(0.04) 1 |
|
OPDR3515-2 |
Perforated | (1.38) 35 | (0.59) 15 | (0.08) 2 |
| OPDR3515-3 | Perforated | (1.38) 35 | (0.59) 15 |
(0.12) 3 |
|
ONPDR1555-1 |
Non-Perforated | (0.59) 15 | (0.21) 5.5 | (0.04) 1 |
| OPDR1555-1 | Perforated | (0.59) 15 | (0.21) 5.5 |
(0.04) 1 |
For CR+3 & Aluminum coatings please add ‘CR / AL’ after Part Code! For example: ONPDR3575-0-CR
Din Rail Support- CR+3 Code: ODRSCR2023
Din Rail Support- Aluminum Code: ODRSA2023
