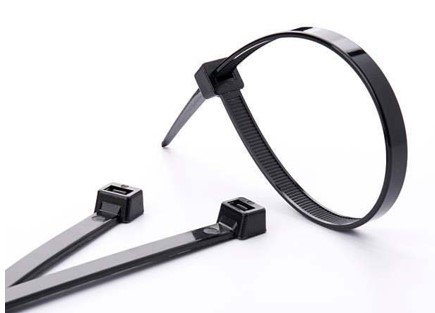

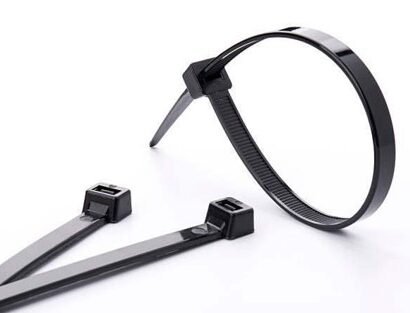

UV Resistant Cable Ties

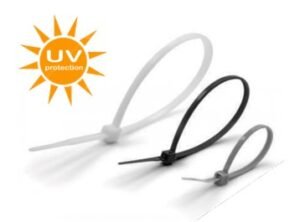

Uv resistant cable ties are produced from extra-doped polyamide 6.6 material that provides extra resistance against UV rays. UV resistant cable ties tested according to CEI EN 62275 norm simulate a condition equivalent to at least 10 years of exposure to sunlight in southern European countries.
Certifications
Reach, Rohs, Halogen free
- Excellent resistance to UV rays
- Suitable for photovoltaic applications
- High tensile strength with low application force

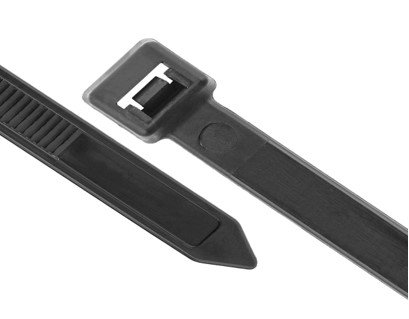

- Edge surface slope for easy application
- Easy application manually or with apparatus
Technical Specifications
- Raw material: Polyamide 6
- Moisture Absorption: 7% (50% relative humidity)
- Working temperature: -40 ° C + 85 ° C
- Application temperature: -10 ° C + 60 ° C
- Combustion degree: UL 94 class V2
- Halogen free: Yes
Application Areas
- Photovoltaic areas
- Outdoor applications
- Industrial cabling
- Energy sector
| Product Code | Length (Inch) | Width (Inch) | Strip Thickness (Inch) | Color | Tighten Range, max ø (inch) | Max Tensile Strength (Lbf) |
| 300-48B | 11.8 | 0.177 | 0.051 | Black | 3.15 | 48 |
| 200-75B | 7.8 | 0.295 | 0.06 | Black | 1.81 | 120 |
| 300-75B | 11.8 | 0.295 | 0.06 | Black | 2.95 | 120 |
| 370-75B | 14.5 | 0.295 | 0.06 | Black | 3.85 | 120 |
Description
120lbs Max. Tensile Strength Cable Zip Ties, Heavy Duty, Extra Strong, Industrial Strength, UV Resistant, Indoor and Outdoor, Residential/Commercial
